تفاصيل المنتج:
|
| وظيفة: | اختبار الضغط ، اختبار قوة ضغط أنبوب الورق ، اختبار الانفجار ، اختبار الشد ، أداة اختبار الورق | اسم: | اختبار قوة ضغط أنبوب الورق ، ورقة اختبار الورق ورقة اختبار GSM/ اختبار قوة الانفجار ، أداة اختبار ال |
|---|---|---|---|
| عرض: | LCD ، العرض الرقمي | تبديل الوحدات: | KGF ، n. (اختياري) ، LBF |
| الكرة الفولاذية: | 16mm * 20 | نطاق التردد: | 60-300 جولة/دقيقة قابلة للتعديل |
| وضع القيادة: | مدفوعة بالطاقة | الوزن الإجمالي: | 120 كجم |
| لون: | خياري | سرعة التثبيت: | 50-300 مم / دقيقة |
| برمجة: | تم 2101 | البعد: | 530 (L)* 490 (D)* 960 (H) mm |
| سرعة الاختبار: | 12.7 ملم/دقيقة | سرعة الاحتكاك: | 85 |
| قرار القوة: | 1/500000 من أقصى قوة اختبار FS | قوة: | AC 220V ， 2.6a |
| يستخدم: | مواد التعبئة والتغليف | حجم الخشب الرقائقي: | ارتفاع 48 بوصة * عمق 48 بوصة |
| ميناء: | 400 ~ 1500 ملم | ||
| إبراز: | Paper Packaging Impact Tester,Digital Pendulum Impact Tester,Precision Digital Pendulum Impact Tester,Digital Pendulum Impact Tester,Precision Digital Pendulum Impact Tester |
||

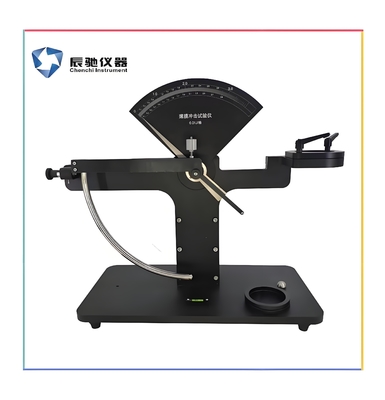

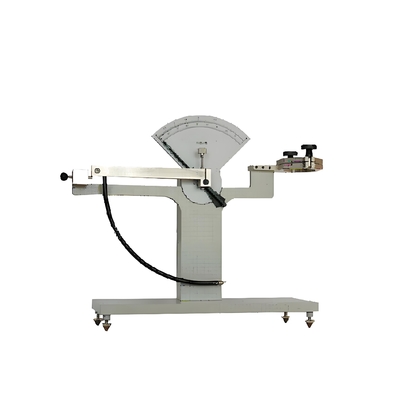

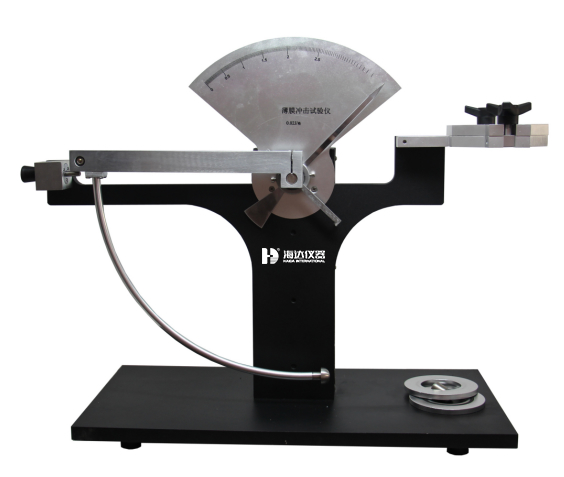

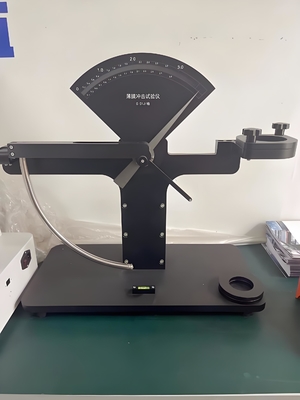

The 5086-HD Film Pendulum Impact Tester measures the pendulum impact resistance of plastic films, sheets, and composite films using a standard pendulum head and weighted pendulum arm. Ideal for testing impact toughness of various packaging materials including food and medicine packaging films, metal foils, and paper composites.
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Steel Ball | 16mm * 20 |
| Frequency Range | 60-300 round/min adjustable |
| Drive Mode | Power-driven |
| Gross Weight | 120kg |
| Clamping Speed | 50-300mm/min |
| Test Speed | 12.7mm/min |
| Force Resolution | 1/500000 of the maximum test force fs |
| Power | AC 220V，2.6A |
| Dimensions | 530(L)*490(D)*960(H)mm |
| Parameter | Specification |
|---|---|
| Capacity | 3J |
| Scale value | 0.01J |
| Pendulum swing radius | R280 mm |
| Pendulum angle | 90° |
| Impact speed | 2.5m/S |
| Impact head size | Φ12.7 mm |
| Sample holder diameter | Φ60, Φ89mm |
| Sample size | 100 X 100 mm |
Complies with GB/T8809 and ASTM D3420 testing standards.
Ideal for testing impact resistance of various materials including PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber films, metal foil materials, and paper/paperboard composites used in packaging applications.
The instrument uses a semi-spherical punch to impact and break the sample at a controlled speed, measuring the energy consumed during impact to evaluate the material's anti-pendulum impact energy value.
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
