تفاصيل المنتج:
|
| وقت تطبيق اللهب: | قابل للتعديل: 0-3200.0 ثانية | وقت الاحتراق: | قابل للتعديل: 0-3200.0 ثانية |
|---|---|---|---|
| زاوية الموقد: | ثابت عند 90 درجة (رأسية) | ارتفاع اللهب: | قابل للتعديل: 20-100 مم (متوافق مع المعيار) |
| عرض درجة الحرارة: | قراءات رقمية القرار: 0.1 درجة مئوية | المسطرة الحديدية: | الطول: 500 ملم ؛ الدقة: 1mm |
| غاز الوقود: | غاز المسال العالي | إمدادات الطاقة: | تيار متردد 220 فولت ، 50 هرتز |
| أبعاد غرفة الاحتراق (L × W × H): | 385 × 204 × 360 مم | ||
| إبراز: | Automotive Interior Materials Flammability test equipment,Flammability Testing Machine,Automotive Interior Materials Flammability Testing Equipment,Flammability Testing Machine,Automotive Interior Materials Flammability Testing Equipment |
||

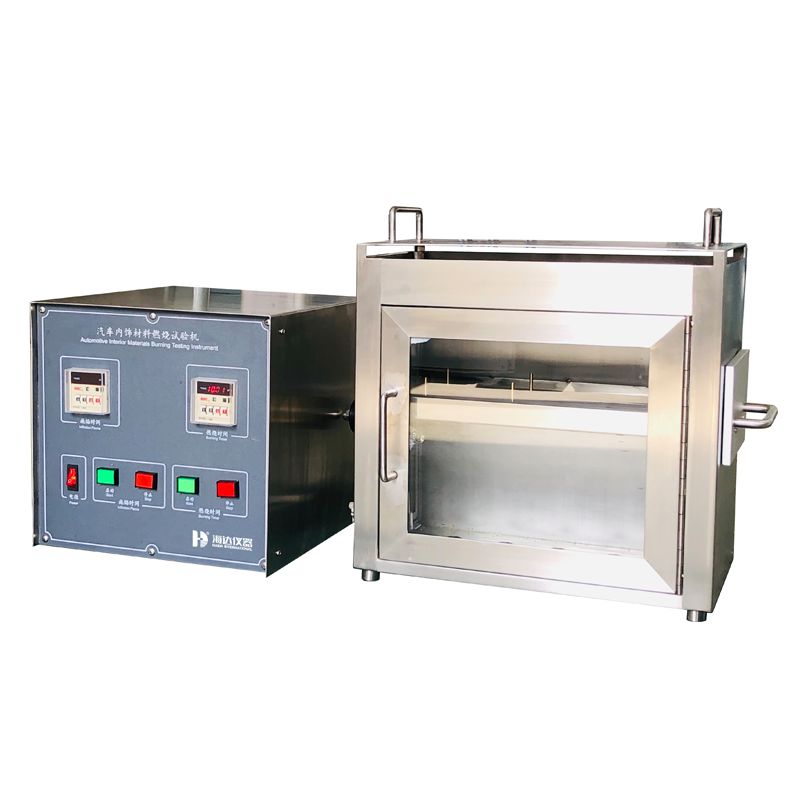

Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.
GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795
| Model | 6022-HD |
| Combustion Chamber Dimensions (L×W×H) | 385×204×360mm |
| Flame Application Time | Adjustable: 0-99 minutes 99 seconds |
| Burning Time | Adjustable: 0-99 minutes 99 seconds |
| Burner Angle | Fixed at 90° (vertical) |
| Burner Specifications | Nozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes. |
| Flame Height | Adjustable: 20-100mm (standard-compliant). |
| Thermometer | Range: 150°C; Resolution: 1°C. |
| Steel Ruler | Length: 500mm; Accuracy: 1mm |
| Fuel Gas | High-purity liquefied gas |
| Configuration | Includes: |
| • Control box | |
| • Combustion chamber | |
| • Burner lamp | |
| • Solenoid valve | |
| • High-voltage igniter | |
| • Thermometer | |
| • Signal control cables | |
| • Upper/lower sample holders | |
| • 500mm/1mm steel ruler. | |
| Power Supply | AC 220V, 50Hz |
