تفاصيل المنتج:
|
| وظيفة: | اختبار الضغط ، اختبار قوة ضغط أنبوب الورق ، اختبار الانفجار ، اختبار الشد ، أداة اختبار الورق | اسم: | اختبار قوة ضغط أنبوب الورق ، ورقة اختبار الورق ورقة اختبار GSM/ اختبار قوة الانفجار ، أداة اختبار ال |
|---|---|---|---|
| عرض: | LCD ، العرض الرقمي | تبديل الوحدات: | KGF ، n. (اختياري) ، LBF |
| سرعة الاختبار: | 10 ~ 200 مم/دقيقة | البعد: | 360*264*400mm ، 70*34*60 cm ، 85*65*80cm |
| نطاق القياس: | 250-5600 kPa ، 10 ~ 1000mn | وضع العرض: | شاشة LCD ، الوضع الرقمي |
| معايير التصميم: | ISO 2248 ، ASTM-D2210 ، TAPPI T403 ، GB/T4857-92 ، JIS Z0202-87 | ||
| إبراز: | Digital Display Tube Compressive Tester,LCD Paper Tube Compressive Tester,Paper Tube Compressive Strength Tester,LCD Paper Tube Compressive Tester,Paper Tube Compressive Strength Tester |
||
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Name | Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Testing speed | 10 ~ 200 mm/min |
| Dimension | 360*264*400mm, 70*34*60 cm, 85*65*80cm |
| Measuring range | 250-5600 Kpa, 10 ~ 1000mN |
| Display mode | LCD display, digital mode |
| Design criteria | ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87 |

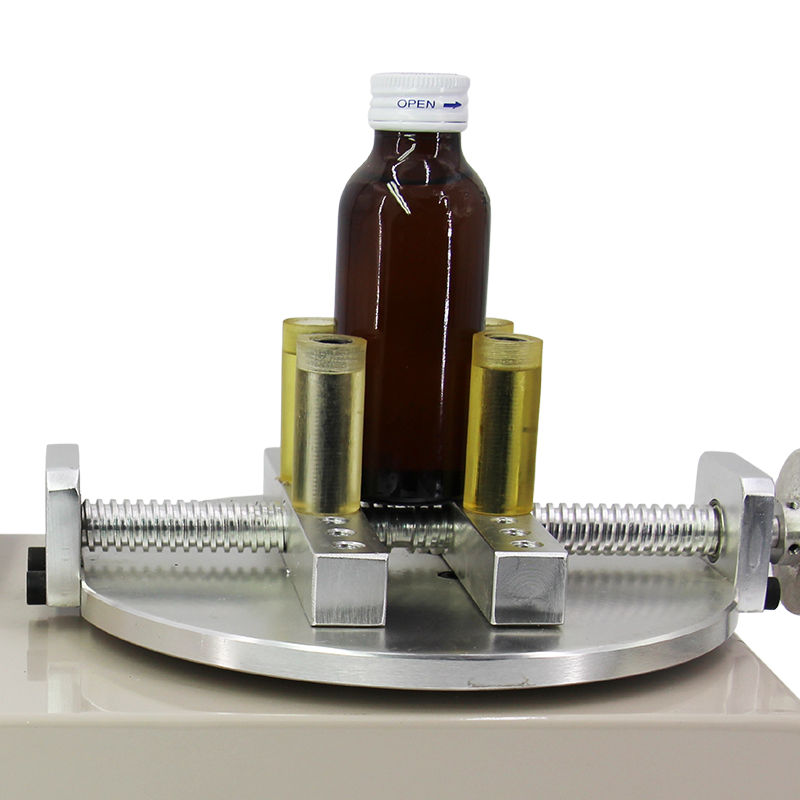

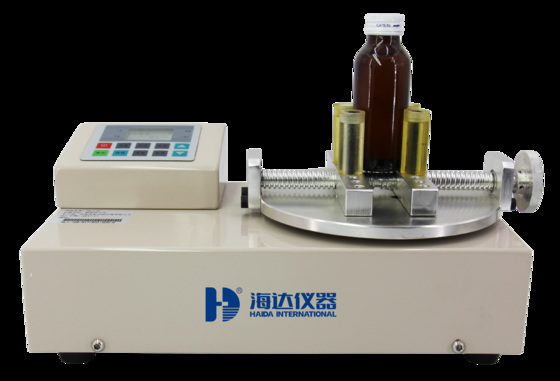

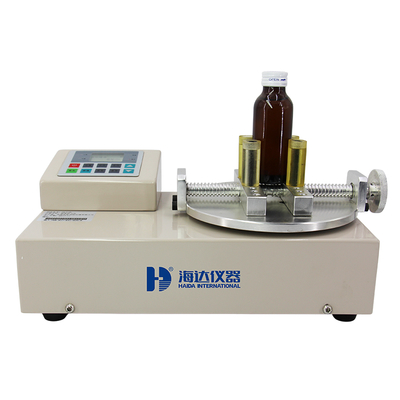

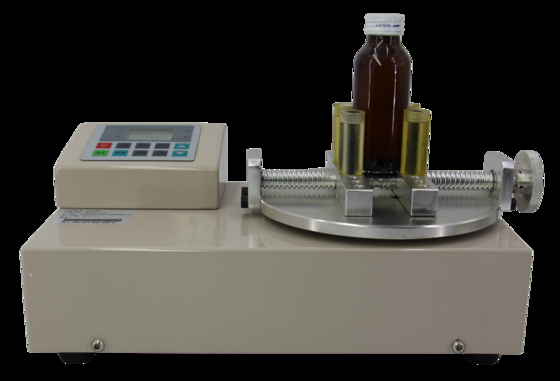

The 5079-HD Bottle Capping Torque Tester is designed for precise torque measurement in the pharmaceutical, food and beverage, and filling industries. It accurately tests the opening torque of various packaging products including bottles, hoses, and nozzle closures.
| Item | Description |
|---|---|
| Measuring range | 0～99ib.in |
| Resolution | 0.001 Nm |
| Accuracy | ±0.5% |
| Display mode | Touch screen; LCD display |
| Unit | N.m; kg.cm; ib.in; N.cm |
| Clamping range | Ф25mm～Ф170mm (Diameter) |
| Power supply | 5V rechargeable battery AC220V 50HZ power adapter |
| Data output method | Micro printer, optional PC output |
| Save quantity | 1～99 |
| Machine size | 330*200*200mm |
| Weight | 15 KG |
| Design standard | GB/T 17876, ASTM D 2063, ASTM D 3198, ASTM D 3474 |
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
