تفاصيل المنتج:
|
| وظيفة: | اختبار الضغط ، اختبار قوة ضغط أنبوب الورق ، اختبار الانفجار ، اختبار الشد ، أداة اختبار الورق | اسم: | اختبار قوة ضغط أنبوب الورق ، ورقة اختبار الورق ورقة اختبار GSM/ اختبار قوة الانفجار ، أداة اختبار ال |
|---|---|---|---|
| عرض: | LCD ، العرض الرقمي | تبديل الوحدات: | KGF ، n. (اختياري) ، LBF |
| وضع العرض: | شاشة LCD ، الوضع الرقمي | معايير التصميم: | ASTM D3078 , GB/T 15171 |
| مزود الطاقة: | 220 فولت ، 50 هرتز | دقة التحميل: | ≤0.5 ٪ |
| لوحة الطباعة: | φ 65mm φ 65mm × 20mm × 10mm | عداد: | شاشة LCD،0~999,999 |
| تحميل خلية: | 1 خلية تحميل لأعلى دقة | سرعة الاختبار: | 2 °/ الثانية |
| وضع العرض: | شاشة LCD | الحد الأقصى لوزن الاختبار: | 500 كجم |
| أعلى دقة: | 0.1n ؛ | الهواء المضغوط: | 6 كجم/سم2 |
| قدرة الطاقة: | 5.3 حصان | طريقة الاستشعار: | مرسل الضغط |
| إسقاط منطقة المنصة: | (الطول×العرض) 1700×1200 مم | وزن ثقيل: | 7kgf |
| نموذج: | PPTI-100 | ||
| إبراز: | ASTM D3078 Compressive Strength Tester,Paper Tube Compressive Strength Tester,GB/T 15171 Compressive Strength Tester,Paper Tube Compressive Strength Tester,GB/T 15171 Compressive Strength Tester |
||
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Name | Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Display mode | LCD display, digital mode |
| Design criteria | ASTM D3078, GB/T 15171 |
| Power Supply | 220V, 50Hz |
| Load Accuracy | ≤0.5% |
| The Printing Plate | φ 65mm φ 65mm × 20mm × 10mm |
| Counter | LCD, 0~999,999 |
| Load Cell | 1 Load Cell For Highest Accuracy |
| Testing Speed | 2°/ second |
| Display Mode | LCD |
| Maximum Test Weight | 500KG |
| The Highest Resolution | 0.1N |
| Compressed Air | 6 kg/cm2 |
| Power Capacity | 5.3 HP |
| Sensing Method | Pressure Transmitter |
| Drop Platform Area | (L×W) 1700×1200 mm |
| Heavy Weight | 7kgf |
| Model | PPTI-100 |

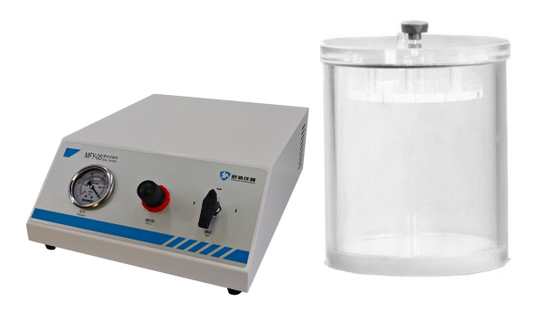

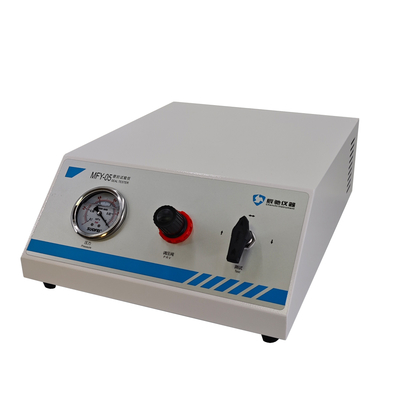

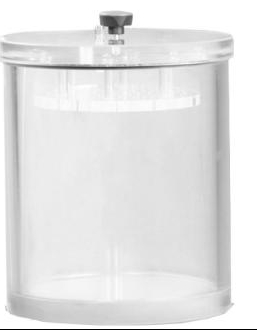

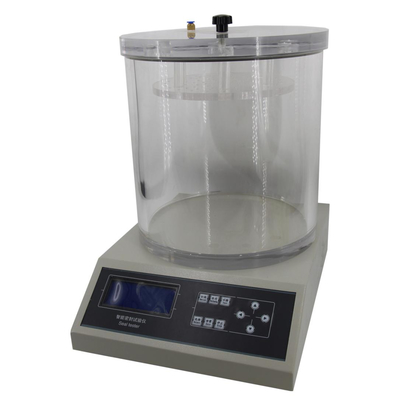

This leak test machine is suitable for sealing tests of bottles, pipes, cans, and boxes in industries including food, pharmaceuticals, medical equipment, daily chemicals, automotive, electronic components, and stationery. It can also evaluate sealing performance after drop tests and pressure resistance tests.
ASTM D3078, GB/T 15171
| Item | Description |
|---|---|
| Vacuum Density | -90-0kPa |
| Accuracy | ± 0.1kPa |
| Pressure speed | 1m/s |
| Available Vacuum room Size | Standard: Φ270mm×210mm(H) (custom sizes available) |
| Air pressure | 0.7MPa (user-provided) |
| Gas Source interface | Φ6PU pipe |
| Control ways | Microcomputer control, automatic test |
| Display ways | LCD display |
| Power | AC 220V 50Hz (AC110V 50HZ available) |
| Standard Configuration | Main unit, experimental sealed barrels, power cords |
| Net Weight | 16kg |
| Dimensions | (L×W×H) 420×320×520mm |
Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
