5012-HD Diaper Permeability Tester for Absorption Rate Testing

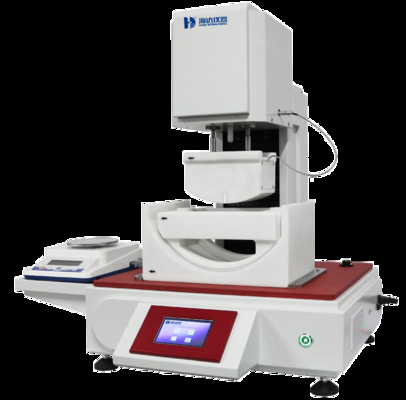

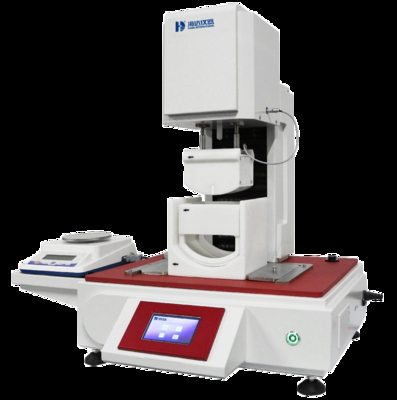

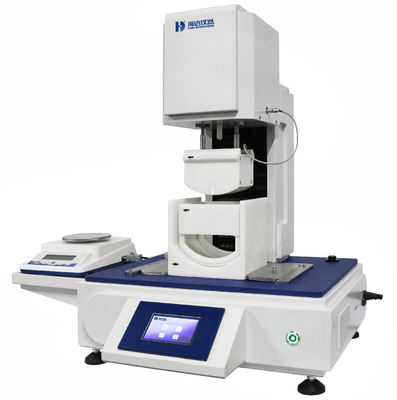

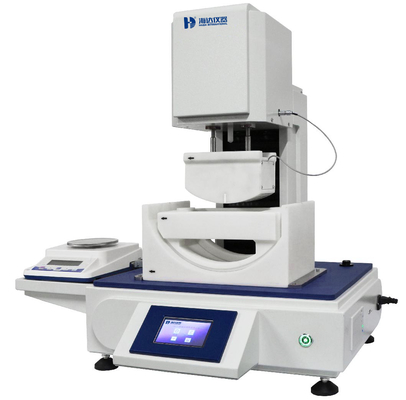

صورة كبيرة : 5012-HD Diaper Permeability Tester for Absorption Rate Testing

تفاصيل المنتج:

Place of Origin:	China
اسم العلامة التجارية:	Haida
إصدار الشهادات:	CE、ISO
Model Number:	5012-HD

شروط الدفع والشحن:

Minimum Order Quantity:	1 set
الأسعار:	قابل للتفاوض
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

اتصل

5012-HD Diaper Permeability Tester for Absorption Rate Testing

وصف

Function:	compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument	Name:	paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display:	LCD,Digital display	Feature:	easy to operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction type protection device	Control:	PLC control
Sensing Method:	Pressure Transmitter	Stop:	Stop test
Force Resolution:	1/500000 of the maximum test force fs	Vibration Mode:	reciprocating
إبراز:	5012-HD Permeability Tester,High Precision Diaper Permeability Tester , High Precision Diaper Permeability Tester

5012-HD Diaper Permeability Tester

Product Attributes

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument
Display	LCD, Digital display
Feature	Easy to operate
Operation Method	Automatic
Product Type	Testing Instruments
Protection Device	Induction type protection device
Control	PLC control
Sensing Method	Pressure Transmitter
Stop	Stop test
Force Resolution	1/500000 of the maximum test force fs
Vibration Mode	Reciprocating

Application

This tester is designed to measure the permeation properties of diapers and incontinence products, including absorption rate, re-wet amount, and leakage amount.

Test Standards

GB/T 28004.1-2021 Diapers Part 1: Baby Diapers
GB/T 28004.2-2021 Diapers Part 2: Adult Diapers

Instrument Characteristics

Automatically performs liquid addition, constant pressure pressurization, timing, and measures absorption performance indicators
Touch screen control with Chinese/English menus and user-friendly interface
Built-in thermal printer for immediate test result printing
Compatible with professional computer analysis software
High-precision peristaltic pump ensures accurate penetrating liquid volume
316L stainless steel built-in water tank with automatic heating and temperature control
One-button start for automatic liquid addition and testing
Platinum electrodes for fast induction and durability
Stepper motor and high-precision ball screw drive for accurate stroke control
Automatic data processing for test averages, standard deviation, and coefficient of variation
Includes high-precision balance for direct calculation of leakage and re-seepage
Stainless steel weights provide consistent pressure
Buzzer reminder function included

Technical Parameters

Technical Index	5012-HD
Accuracy of timing device	0.01s
Liquid addition device	Add liquid volume deviation ± 2mL, add liquid flow rate: 200 ~ 800mL/min
Liquid addition tank capacity	2L dosing volume
Baby Diapers	(40±2)ml/(60±2)ml/(80±2)ml
Baby disposable diaper	(30±2)ml/(40±2)ml/(50±2)ml
Adult Diapers	(100±2)ml/(150±2)ml
Adult disposable diaper	(70±2)ml/(100±2)ml
Hydraulic pressure strength	(2.0±0.2)kPa
Pressurized Pressure	(4.0±0.2)kPa
