تفاصيل المنتج:
|
| Function: | compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument | Name: | paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument |
|---|---|---|---|
| Display: | LCD,Digital display | Feature: | easy to operate |
| Operation Method: | Automatic | Product Type: | Testing Instruments |
| Protection Device: | Induction type protection device | Control: | PLC control |
| Sensing Method: | Pressure Transmitter | Stop: | Stop test |
| Force Resolution: | 1/500000 of the maximum test force fs | Vibration Mode: | reciprocating |
| إبراز: | Sanitary Napkin Absorption Tester,LCD Display Absorption Speed Tester,LCD Display Absorption Speed Tester |
||
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Name | Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument |
| Display | LCD, Digital display |
| Feature | Easy to operate |
| Operation Method | Automatic |
| Product Type | Testing Instruments |
| Protection Device | Induction type protection device |
| Control | PLC control |
| Sensing Method | Pressure Transmitter |
| Stop | Stop test |
| Force Resolution | 1/500000 of the maximum test force fs |
| Vibration Mode | Reciprocating |

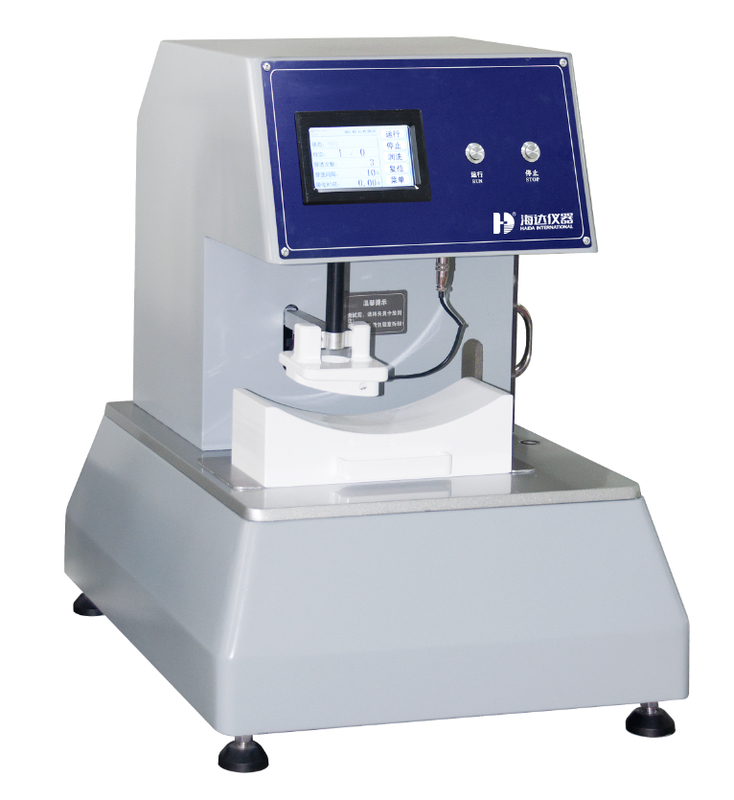

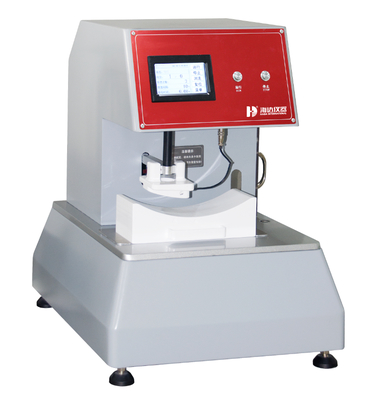

The Sanitary Napkin Absorption Speed Tester measures the absorption speed of sanitary napkins, evaluating whether the absorption layer absorbs liquid in a timely manner.
GB/T8939-2018 GB/T39391-2020
| Item | Description |
|---|---|
| Standard test module | Size: (76 ± 0.1) * (80 ± 0.1) mm; Weight: 127.0 ± 2.5 g |
| Curved specimen seat | L: 230 ± 0.1 mm; W: 80 ± 0.1 mm |
| Volume of liquid added | 1 ~ 50 ± 0.1 ml |
| Discharge rate | ≤ 3s |
| Test module lifting speed | 50～200mm/min (adjustable) |
| Automatic timer time range | 0 ~ 9999 |
| Automatic timer resolution | 0.01s |
| Power | AC220V, 0.5KW |
| Dimensions (L*W*H) | 420*480*520mm |
| Weight | 42kg |
| Configuration list | Curved test stand module *1, Standard module *1, 250ml measuring bottle *1 |
