تفاصيل المنتج:
|
| معايير التصميم: | ASTM D646 ، JIS P8124 ، QB / T 1671 | طريقة التشغيل: | التحكم في الحواسيب الصغيرة |
|---|---|---|---|
| الحد الأدنى للقراءة: | 0.1 | إسقاط الانحراف: | ± 10 ملم |
| دقة التحميل: | 1/250،000 | معايير الاختبار: | ISO ، ASTM ، Tappi |
| اختبار السقوط: | الزوايا، الحواف، وجوه العينة | زاوية الانحناء المقدرة: | ± 7.5 ° و ± 15 ° |
| الاستخدام: | اختبار التعبئة | حجم الخشب الرقائقي: | H48in * D48in |
| الهواء المضغوط: | 6 كجم/سم 2 | خيارات اختبار التحميل: | 55g ، 175g ، 275g |
| وضع القيادة: | مدفوعة بالطاقة | تحميل دقة الخلية: | 1/250،000 |
| إبراز: | coefficient friction tester,Paper Packaging Testing Friction tester,coefficient friction Tester 5027-HD,Paper Packaging Testing Friction tester,coefficient friction Tester 5027-HD |
||

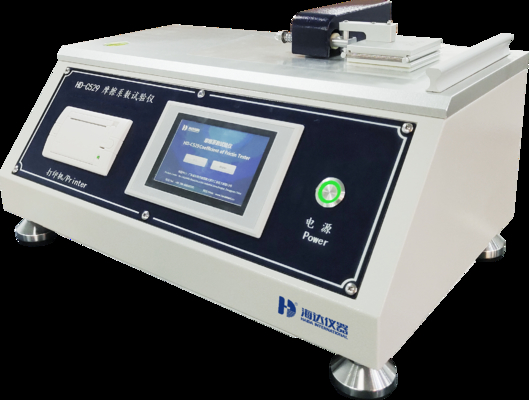

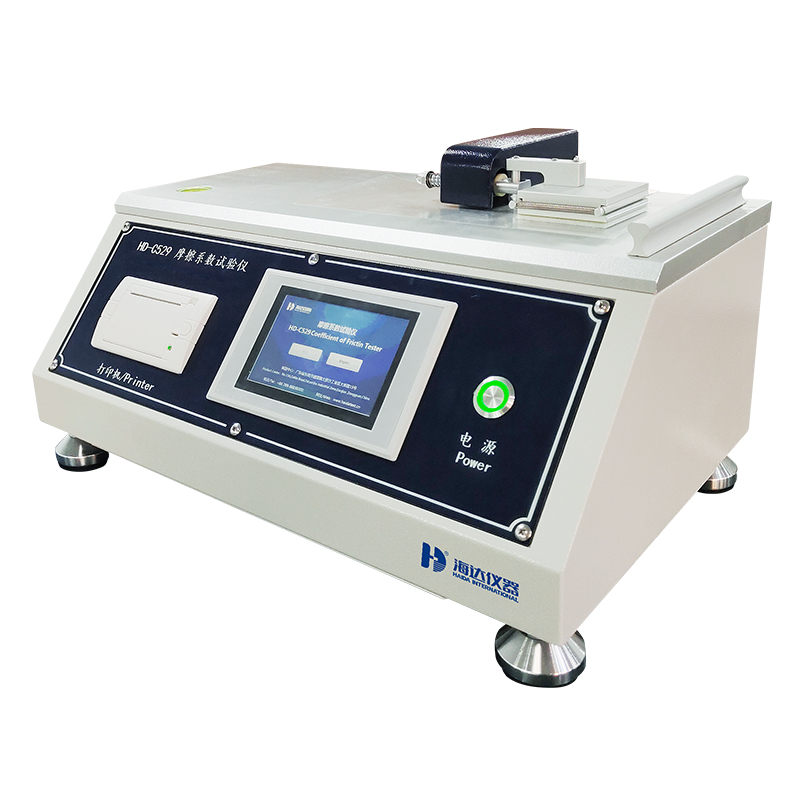

This tester complies with GB 10006-88 and ISO 8295-1986 standards for measuring dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness < 0.2mm) when sliding on themselves or other materials. Suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The measured friction coefficient indicates product smoothness.
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB/T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ±7.5° and ±15° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm² |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | Power-driven |
| Specification | 5027-HD |
|---|---|
| Control mode | Touch screen control |
| Test stroke | 1-200mm |
| Test speed | 100±10mm/min (speed adjustable) |
| Slider weight | 200±2g (others can be customized) |
| Upper sample size | 63mm*63mm (L*W) |
| Lower sample size | 80mm*200mm (L*W) |
| Force test accuracy | ±0.02N |
| Measuring range | 0.001-5N (expandable) |
| Instrument dimensions | Approx. 490*320*210mm (L*W*H) |
| Usage environment | Indoor temperature 20±10℃, relative humidity <85% |
| Power supply | 1∮ AC220V |
| Machine weight | Approx. 18kg |
| Power | Approx. 350W |
The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force test module for uniform linear motion. Samples are secured under the handle, and the system calculates friction coefficients during motion, with results printed upon completion.
