تفاصيل المنتج:
|
| تردد التحميل: | يمكن ضبطها | اختبار السكتة الدماغية: | 1000mm |
|---|---|---|---|
| ارتفاع التأثير: | 152mm | ضمان: | 1 سنة |
| تحميل مسند الظهر: | 400N | نتائج الاختبار: | الإخراج عن طريق الطابعة المدمجة |
| قرار درجة الحرارة: | ± 0.1 ℃ | نطاق العداد: | 0-99999 مرات |
| قوة التحميل الدرامية: | 250n | ارتفاع اللهب: | 35mm |
| وضع الاستقراء: | خلية تحميل الدقة | مواصفات الماكينة: | 6.8 م × 2.6 م × 2.4 م |
| أبعاد: | 3.5mx 2.4mx2.4m | ضغط الهواء: | 4 ~ 7 بار |
| قرار الموقف: | دقيقة. 0.2 ملم |

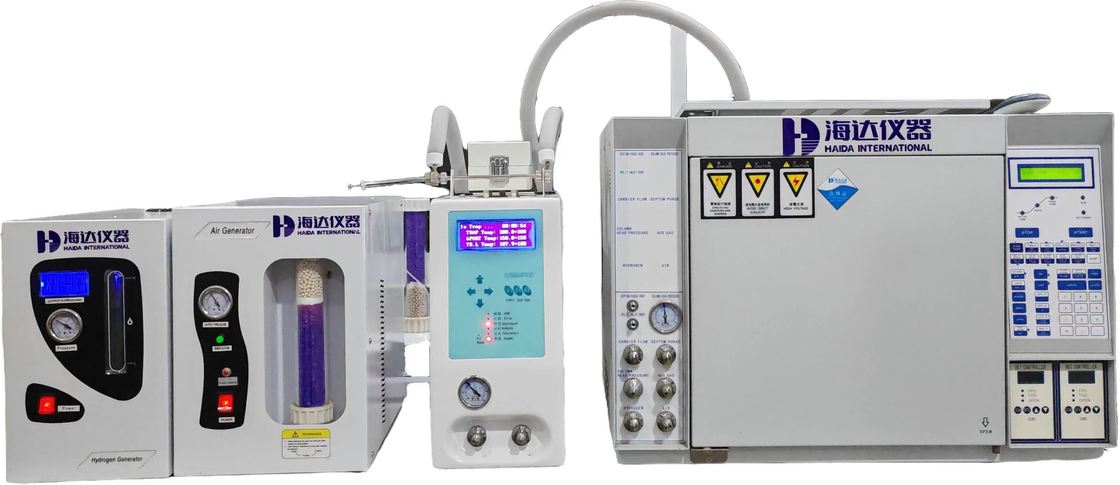

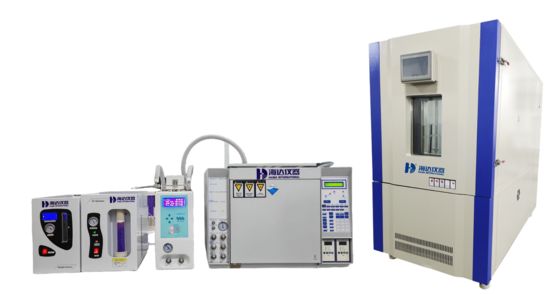

HD-F801-2 Gas Chromatography
A whole set: Automatic thermal desorption apparatus+ Gas Chromatography+Hydrogen generator +Air generator
Technical Parameters of Gas Chromatography
|
Furnace size |
28x 30 x18cm |
|
Temperature range |
|
|
Temperature setting |
1℃ |
|
programmed heating rate |
0.1℃ |
|
Maximum heating speed |
120℃/ min |
|
Temperature stability |
0.01℃when the ambient temperature changes by 1℃ |
|
Programmed temperature rise |
7-step programmed temperature rise |
|
Loss compensation of operable column |
dual channel |
|
Power supply |
220V±10%,2500W (maximum) |
|
Volume |
57x 55 x48 cm |
|
Weight |
around 50kg |
Technical Parameters of Detector:
|
Hydrogen flame ionization detector (FID) |
|
|
Maximum operating temperature |
400℃ |
|
Detection limit |
≤5 x 10-12g / S |
|
Drift |
≤5 x 10-13a / 30min |
|
Noise |
2 x 10-13a |
|
Dynamic linear range |
≥107 |
|
Thermal conductivity cell detector(TCD) |
|
|
Maximum operating temperature |
400℃ |
|
Sensitivity |
≥10000 mv.ml/mg[n-C16] |
|
Drift |
≤100uv / 30mi |
|
Noise |
≤20ua |
|
Dynamic linear range |
≥104 |
|
Electronic capture detector (ECD) |
|
|
Maximum operating temperature |
350℃ |
|
Detection limit |
≤6×10-15 g / ml (γ - 666) |
|
Drift |
≤50uv / 30min |
|
Noise |
≤20uv |
|
Dynamic linear range |
≥104 |
Technical Parameters of Automatic thermal desorption apparatus
|
Temperature control range of sample area |
5℃-400℃; Heat power:200W |
|
Temperature control range of valve injection system |
5℃-180℃; Heat power:60W |
|
Sample transfer line temperature control range |
5℃-200℃; Heat power:40W |
|
Temperature Control Accuracy |
< ±0.1℃ |
|
Temperature control gradient |
< ±0.1℃ |
|
Desorption recovery |
> 95% |
|
Analog sampling flow |
100ml/min |
|
Blowback cleaning flow |
0~200ml/min |
|
Machine Size and Weight( L x W x H) |
400x170x300mm,Around 12kg |
