Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing

Detailed Product Information

• Place of Origin: China

• Brand Name: Kingpo

• Certification: ISO9001, CE

• Model Number: 8280

• Weight: 2 kg

• Dimensions: 290×270×60 mm (L×W×H)

• Power Supply: 220 VAC, 50 Hz

• Compliance Standards: IEC 60065

• Channel Options: 0° or 90° phase shift

• Reference Frequency: 1000 Hz

• Application: TV test equipment, audio signal testing

Product Overview

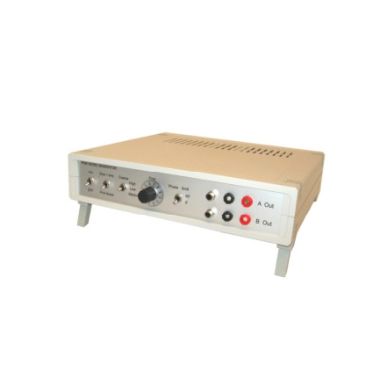

This Pink Noise Generator is designed to meet the pink noise specifications outlined in IEC 60065 (Clauses 4.2 and 4.3) and IEC 62368-1 (Annex E). It is ideal for evaluating tone frequency amplifiers, particularly when dual-channel or 90° phase-shift output is required.

Key Features

• Output options: pink noise or 1000 Hz sine wave (selectable, not simultaneous)

• Dual output channels with configurable phase shift (0° or 90°)

• Adjustable output voltage with fine-tuning capability

• Multiple connector types: RCA and 4 mm banana jacks

• Includes test cables: RCA and 3.5 mm phono connectors

• Complies with IEC 60065 Annex C, Figure C1 (IEC 60268)

Output Voltage Ranges
