تفاصيل المنتج:
|
| نطاق التأرجح: | R300MM | معايير الاختبار: | GB/T 4852 ، JIS Z0237 |
|---|---|---|---|
| معيار التصنيع: | ASTM-D1238 ، D3368 ، JIS-K7210 | قطر عجلة الأسطوانة: | φ (150 ± 0.2) مم |
| حالة الإضاءة: | توصية CIE: 8/د | ضغط الحقن: | 1 طن |
| حجم الصك: | 540 مم × 520 مم × 970 مم | منتج: | معدات اختبار المطاط |
| صيغة فرق الألوان: | △ e*ab △ e*lch | مصدر الطاقة: | بطاريتان AA |
| سقوط السيطرة على الكرة: | التحكم في الملف اللولبي | وزن المطرقة: | 0.25 كجم-16 كجم |
| دقة: | ± 3 ٪ | دقة درجة الحرارة: | ± 0.2 °C |
| كرة لفة: | كرة فولاذية |

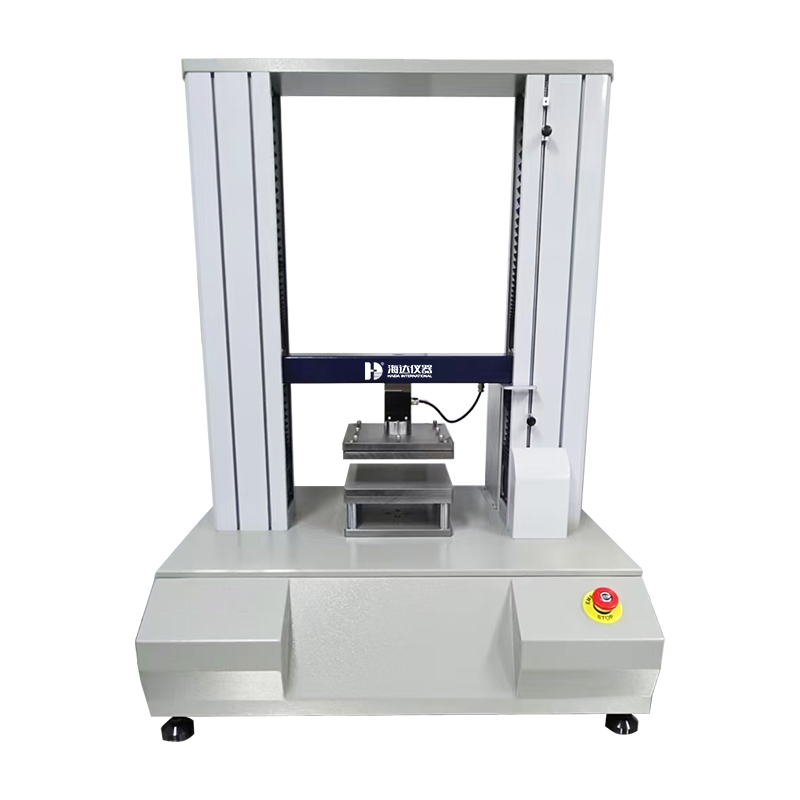

This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.
It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.
ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453
Packaging Dimensions: (WxDxH) 1240 x 840x1320m
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 180kg
| Item | Description |
|---|---|
| Capacity | 500kg, imported load cell |
| Load resolution | 1/250,000 |
| Load Precision | Within ± 0.5% |
| Motor | 400W Panasonic servo motor |
| Operation Mode | Controlled by PC with software, Windows 10 operation |
| Test Speed | 0.1-500mm/min adjustable |
| Max. Stroke | 600mm (excluding fixture) |
| Test unit | gf/kgf/N/kN/lbf/T |
| Dimensions | (L*W*H)790 x 610 x 1100mm |
| Weight | Approx. 170 kg |
| Power | 1∮, 220V, 500W |
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
