تفاصيل المنتج:
|
| يكتب: | خزان مياه التخزين | فئة الدقة: | دقة قياسية |
|---|---|---|---|
| دقة: | ضمن ±15% | طلب: | PV |
| دعم مخصص: | تصنيع المعدات الأصلية، أوديإم | قوة: | 220 فولت 50 هرتز |
| فئة الحماية: | / | الجهد االكهربى: | المعدات الكهربائية 220 فولت |
| ضمان: | 1 سنة | البعد الداخلي: | 700 × 700 × 1200 مم |
| البعد الخارجي: | 1000*1000*1320 مللي متر | الحد الأقصى لحجم العينة: | 300*400*100 مللي متر |
| طريقة رفع العينة: | تجهيز رافعة كهربائية لحمل العينة لأعلى ولأسفل | وزن العينة: | الحد الأقصى يصل إلى 100 كجم |
| قوة: | مرحلة واحدة، 220 فولت، 50 هرتز | معيار الاختبار: | اللجنة الكهروتقنية الدولية 60529 - IPX7 |
| إبراز: | medical suture diameter tester,HD suture diameter measurement,PV module testing equipment with warranty,HD suture diameter measurement,PV module testing equipment with warranty |
||

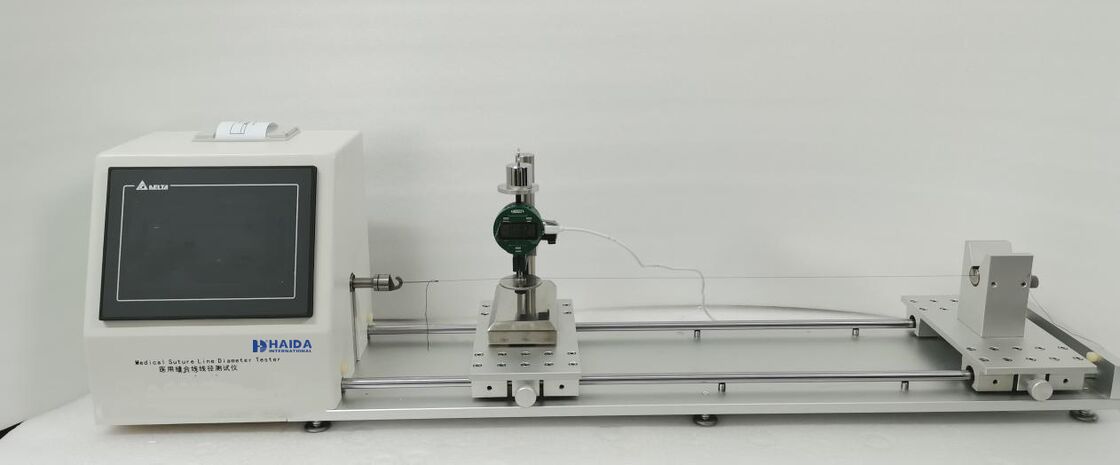

Equipped with a 7-inch K600+ core/dot matrix 65-color touchscreen display at 800*480 resolution. The PLC control system dynamically displays the loading force value. The operable interface is selectable: Chinese/English/Chinese-English switchable. It features digital closed-loop control, an AD acquisition speed of 500KHz, and an internal resolution of 500,000 counts. Includes a high-precision clock chip for power-off storage and overload alarm with automatic shutdown protection. Touch controls include: Nominal Size, Test Load, Print, Test, Move Left, Move Right, Time, and Calibration. Utilizes weight loading for tension, automatically records diameter data, automatically outputs data reports, and prints test results via the built-in printer.
Manufactured in accordance with the clauses related to diameter testing in standards YY1116-2020 "Absorbable Surgical Suture" and YY0167-2020 "Non-Absorbable Surgical Suture".
| Parameter | Specification |
|---|---|
| Nominal Size Range | 12-0 to 10 medical sutures |
| Diameter Measurement Range | 0–5 mm |
| Measurement Error | ≤ ±1‰ |
| Resolution | 0.001 mm |
| Presser Foot Diameter | 12.7 ± 0.02 mm |
| Reference Plate Diameter | 50 mm |
| Presser Foot & Plate Flatness | ≤ ±0.005 mm |
| Presser Foot & Plate Parallelism | ≤ 0.5% |
| Loading Weights Range | 0–2 Kg |
| Weight Accuracy | ±0.1 g |
| Presser Foot Load | ≤60 g, 210 g ± 3 g |
| Print Method | Can print 3-point (1/4, 1/2, 3/4 positions) measurement data and average value; Can print the average of 10 tests, their overall average, and deviation. |
| Shipping List | Main unit x1, Certificate of Conformity x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching hook weights. |
| Power Supply | AC 90V-240V / 50Hz |
| Data Saving | Onboard dot matrix printer / USB export to computer |
| Net Weight | 38 kg |
| Overall Dimensions | 320 * 1200 * 280 (mm) |
